Quarto
documents

Federica Zoe Ricci

November 2023

Your background

Who has ever used?

R Markdown files
Jupyter notebooks
LaTeX (or Overleaf)

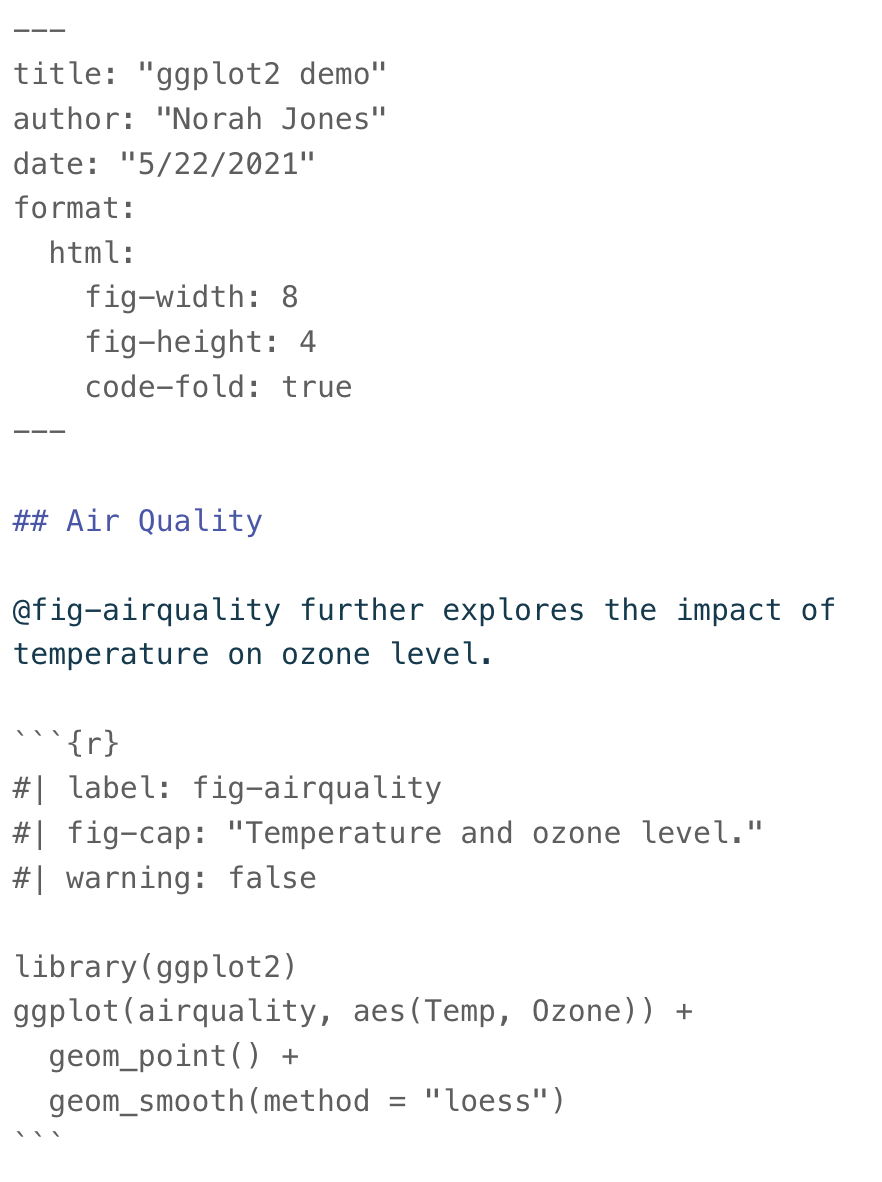

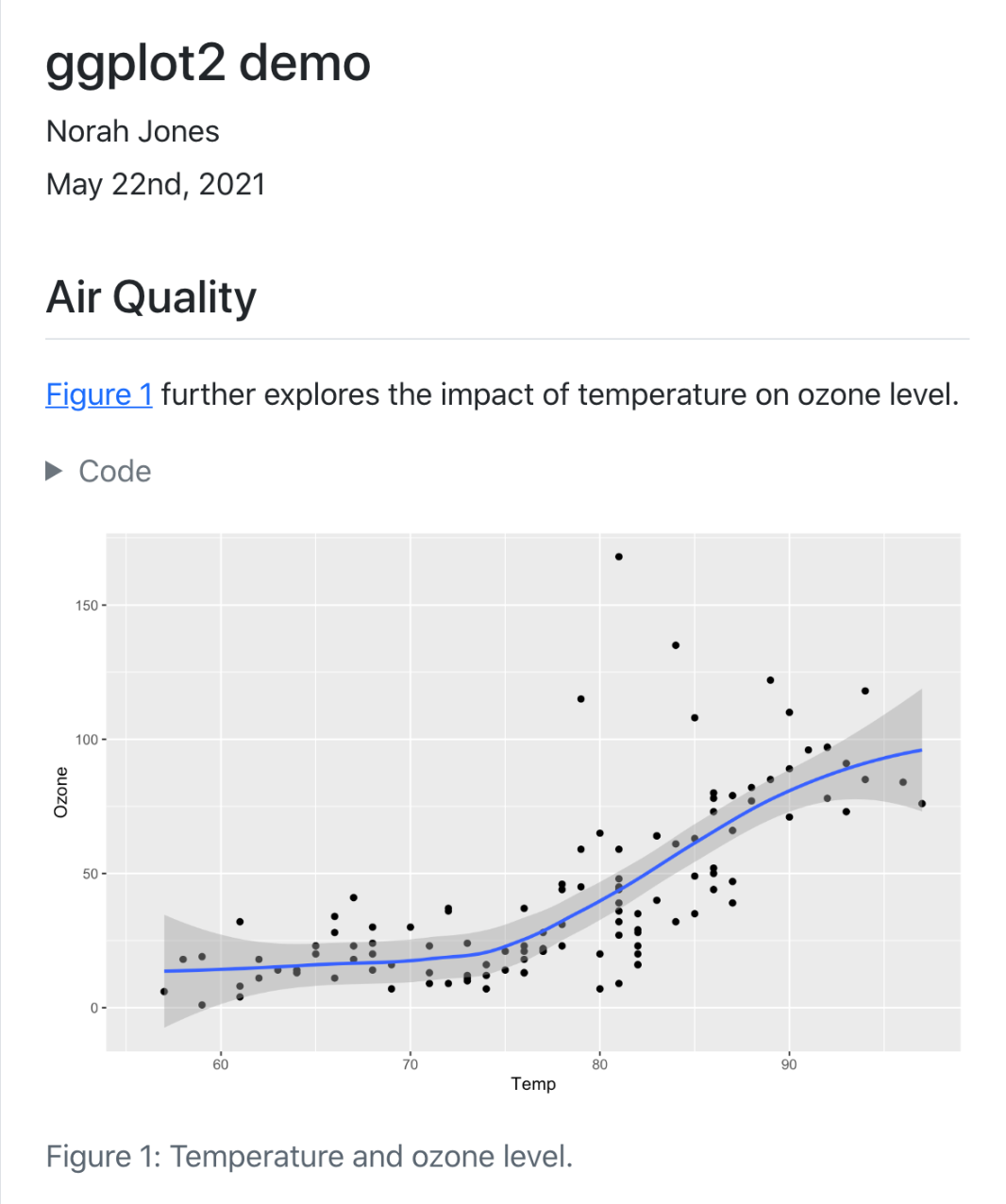

What are Quarto documents?

What can I use Quarto documents for?

research report
(co-)writing a paper
homework / data analysis exam

Also (not today)

presentations
interactive documents
website

Examples

Let me show you a couple of documents I created with Quarto.

You can find them in the folder examples.

Logistics

Who brought a charged laptop with a recent RStudio installed?
Possible re-arrangement of seats
Clone or copy workshop folder on your laptop: github.com/federicazoe/brownbag-quarto-doc
Open it as a project
Render slides and keep them available

Workshop sections

Creating a Quarto document
Formatting
R code, plots and tables
Citations (+ Zotero)
Organizing lots of content

Workshop format

For each section:

quick live demo
you practice with an exercise
- the folder practice has one subfolder per workshop section (except section 1)

1. Creating a Quarto document

Live demo

new document
template components
output format (pdf vs. html)
editor (source vs. visual)

Practice

In practice, create folder 01-create-quarto-doc and:

create html template, change title and save (in Source editor)
create pdf template, change title and save (in Source editor)
in one of the templates, use Visual editor to bold one word (e.g. ‘enables’)
render both documents

03:00

Look:

When you render docs, support files are created!

2. Formatting

Markdown syntax

documents sections
bold, italic, monospace, links
lists
equations

Sections

Markdown Syntax	Output
`# Header 1`	Header 1
`## Header 2`	Header 2
`### Header 3`	Header 3
`#### Header 4`	Header 4

Cross-referencing sections

Make sections numbered

---
format:
  pdf:
    number-sections: true
---

Now if we add a label next to the header

# Introduction {#sec-intro}

We can cross reference it later:

As described in @sec-intro, …

Which renders as

As described in Section 1, …

Text format

Markdown Syntax	Output
`bold`	bold
`italics`	italics
`verbatim code`	`verbatim code`
`[link](https://quarto.org/)`	link

Lists

 - unordered list


     - sub-item 1


     - sub-item 2


        - sub-sub-item 1

unordered list
- sub-item 1
- sub-item 2
  - sub-sub-item 3

Numbered lists


 1. my first tought


 2. then this thought


 3. this thought next


 4. and finally this one!

my first thought
then this thought
this thought next
and finally this one!

Numbered lists (continued)


 1. my first tought


 1. then this thought


 1. this thought next


 1. and finally this one!

my first thought
then this thought
this thought next
and finally this one!

Equations

We can embed LaTex equations in our Quarto documents!


 $$ \beta \sim \text{Normal}(0, \sigma^2) $$

\[ \beta \sim \text{Normal}(0, \sigma^2) \]

Cross-referencing equations

If we use an equation and add a label next to it

$$\beta \sim \text{Normal}(0, \sigma^2)$$ {#eq-lm}

This is how it looks like

\[\beta \sim \text{Normal}(0, \sigma^2) \qquad(1)\]

And we can cross reference it:

As shown in @eq-lm

As shown in Equation 1

Include extra LaTex packages

Basic YAML



---
format: pdf
---

Include an extra library



---
format: pdf
header-includes: |
  \usepackage{subcaption}
---

Now we can add two side-by-side figures with their captions.

Practice

add section numbers
make Setting a subsection of Methodology and fix its broken cross-reference
In Setting
- make text quoted italic
- link word UNISG to UNISG’s website
In Booking methods, change list to numbered list
Add label to equation in Model likelihood so that the cross-reference in Model priors works
In Implementation, make package names bold:
- rstan and lme4

10:00

3. R code, plots and tables

Code chunks (or cells)

You can add chunks by Code\Insert Chunk or with the keyboard shortcut Cmd + Alt + I (Mac) or Ctrl + Alt + I (Windows)

library(palmerpenguins)

data(penguins)
mean(penguins$bill_length_mm, na.rm = TRUE)

[1] 43.92193

Compute summaries within the text

library(palmerpenguins)

data(penguins)
mean_bill_length <- mean(penguins$bill_length_mm, na.rm = TRUE)

Then `r mean_bill_length` becomes 43.9219298 in text.

One can also directly use `r mean(penguins$bill_length_mm, na.rm = TRUE)`

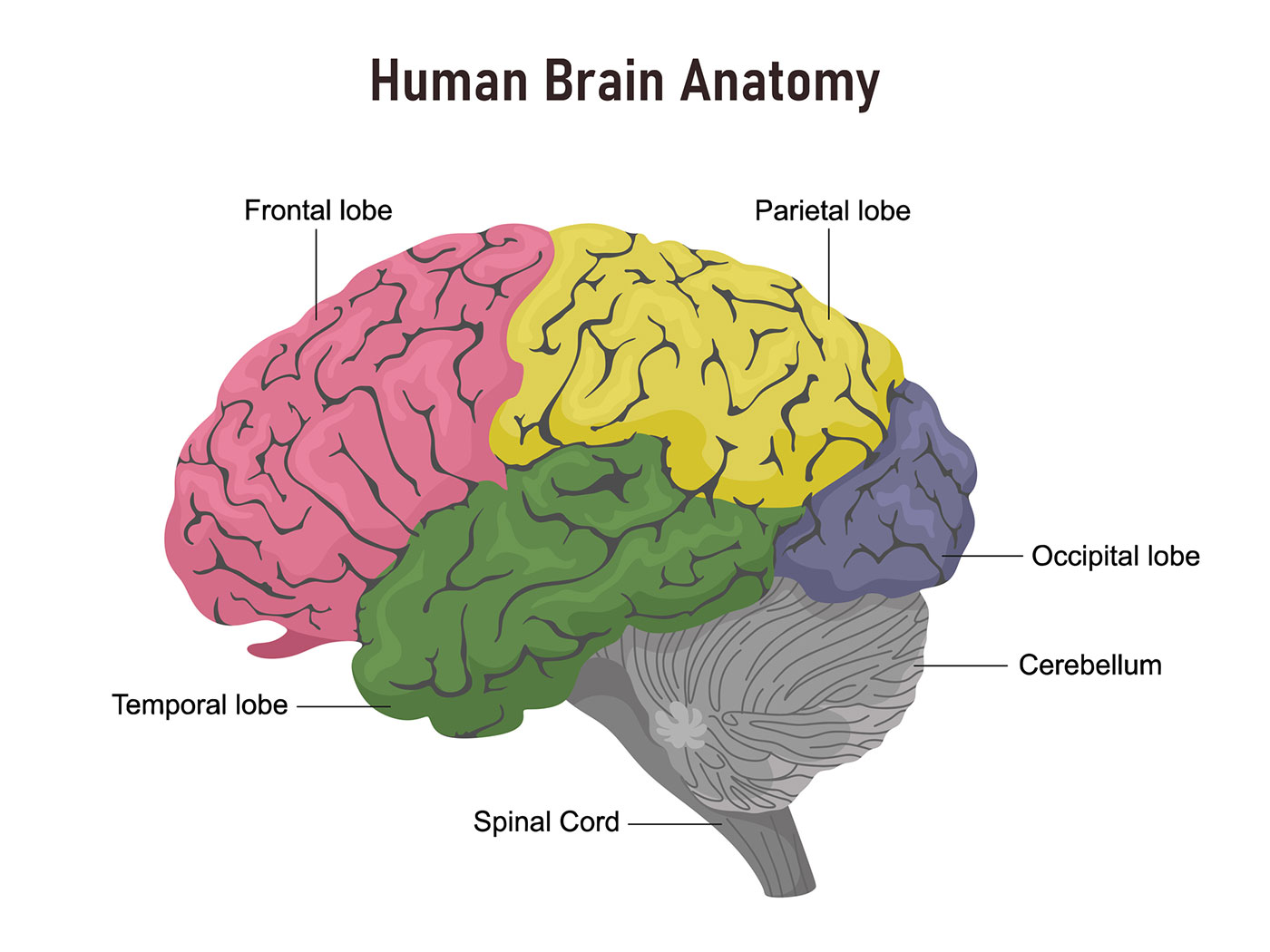

Add external figures

```{r}
#| label: fig-brain
#| fig-cap: "Image of human brain. Image Credit: www.hopkinsmedicine.org"
#| out-width: 60%

knitr::include_graphics("figures/brain.jpg")
```

Figure 1: Image of human brain. Image Credit: www.hopkinsmedicine.org

#| echo: fenced
#| label: tbl-penguins
#| tbl-cap: "Mean bill length, bill depth and flipper length."

library(kableExtra)
library(palmerpenguins)
library(dplyr)

penguins_summary <- penguins %>%
  group_by(species) %>%
  summarize(
    mean_bill_length_mm = mean(bill_length_mm, na.rm = TRUE),
    mean_bill_depth_mm = mean(bill_depth_mm, na.rm = TRUE),
    mean_flipper_length_mm = mean(flipper_length_mm, na.rm = TRUE),
  )

kable(penguins_summary,
      col.names = c("Species",
                    "Bill length (mm)",
                    "Bill depth (mm)",
                    "Flipper length (mm)"),
      digits = 1)

Table 1: Mean bill length, bill depth and flipper length.

Species	Bill length (mm)	Bill depth (mm)	Flipper length (mm)
Adelie	38.8	18.3	190.0
Chinstrap	48.8	18.4	195.8
Gentoo	47.5	15.0	217.2

Figures

Same as with tables, but use #| label: fig-yourchoice

Recall, @sec- and @eq- for cross-references of sections and equations.

Now, @fig- and @tbl- for cross-references of figures and tables.

Cells options

There are a lot of cells options to control the execution and output of executable code blocks.

For example, you can set warning: false and message: false to suppress warnings and messages in the output.

```{r}
#| warning: false
#| message: false

# Some code here
```

YAML execution options

Or you can set options in the YAML for the entire document!

---
format: pdf
execute:
  echo: false
  message: false
  warning: false
---

Practice

At the end of Treatment assignment, add the figure crossover-design.jpg, write a short caption, set its width to 90% and make sure it is cross-referenced correctly.
Modify YAML so that code won’t show, and also hide messages and warnings
Use the code in code.R to fill-in the r chunks
Fill in the XXXXX in Sample and Canteen attendance with appropriate in-line code.
Add labels and write captions for the figure and the table.
Fix reference to Table

10:00

4. References

Live demo

Zotero -> create folder for this project
Google Scholar -> find references and add them to Zotero folder¹
RStudio, Visual editor -> add references
Note: references.bib can be edited with row BibTex (show in Google Scholar)

Practice

Add references for rstan and lme4 to your empty references.bib
Cite them in Implementation

05:00

5. Organizing lots of content

Child documents


---
title: "Analysis of experiment in a university canteen"
format:
  pdf:
    number-sections: true
execute:
  echo: false
  warning: false
  message: false
bibliography: references.bib
---

{{< include 01-methodology.qmd >}}

{{< include 02-results.qmd >}}

\newpage

# References

Remarks

Check locations of references and figures with respect to main document.

Practice

Combine methodology and results:
- unique YAML
- add title
- references at the end

05:00

Resources & Acknowledgements

Getting Started with Quarto - RStudio conference workshop (2022)
Create Awesome Tables with kableExtra!
Data scientist icon on title slide from glebb
